WIP Korg Wavestation Power Supply

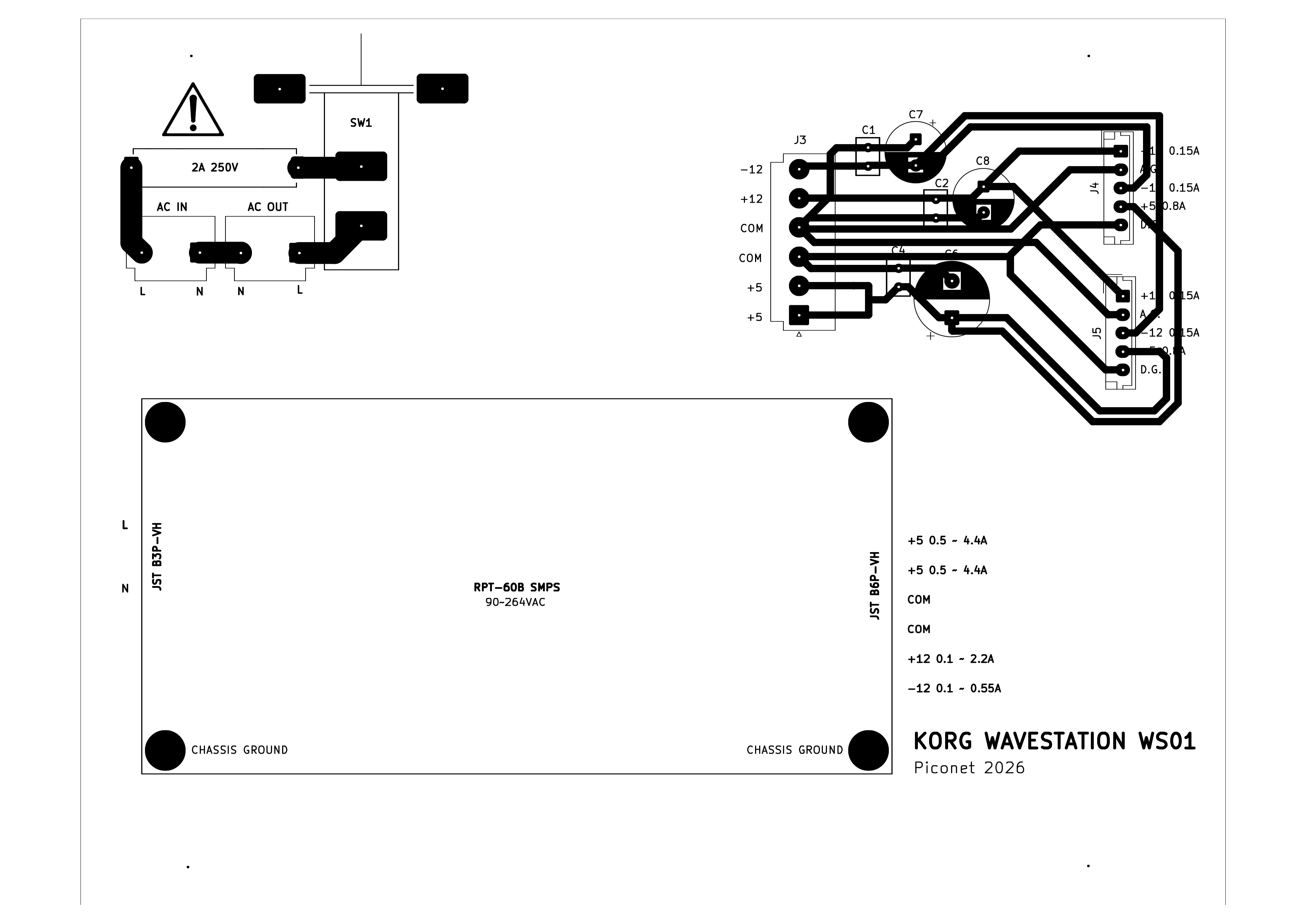

A Korg Wavestation power supply carrier board, intended to host the readily-available MEAN WELL RPT-60B medical switch mode power supply.

Outside of powering the dedicated electroluminescent display inverter, both power board models (KLM-1421 and KLM-1422) take mains input and deliver common voltages over five-pin JST connectors.

Contemporary LCD displays take their power from the 5v digital rails, making for a much easier job.

These will never be for sale - while I likely don't need an EC declaration of conformity to sell unpopulated circuit boards, I personally feel like I should. Mains voltage is dangerous.

For now, this is an idea in motion.

I will eventually upload all KiCad sources and a bill of materials here (and nowhere else). After that, you're on your own (to do your due dilligence).
